NEW Design re-engineered by HigherPoweredH2O and produced by Evergreen Hydrogen!

Now, you can have external connections on your Dry Cell:

—No more soldering power leads (Stainless does not hold solder for long) —No ugly wires sticking out of the top —Highly-conductive bolt-on connections stay cooler —Smaller end-plates (extra room not needed for wires) easier to install

This HHO generator cell KIT is intended for experienced installers and qualified auto mechanics.

This UNIT IS a 4N3 unit – 16 plates total – workhorse UNIT!

THIS KIT IS UNASSEMBLED - YOU will assemble it using our easy step-by-step video.
This unit will produce a solid 2.5 – 3LPM+ in most applications.

This unit will produce more gas (not steam or vapor) than most designs available on the internet that cost $700 – $1000

If you want to just boil water, why pretend like you’re making HHO?

This cell RIPS! Stop playing around with dangerous glass grenades and plastic paint cups!

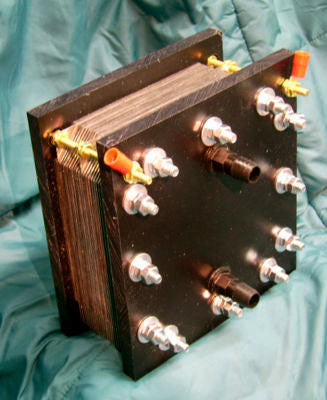

Please read entire ad as some improvements/changes were made after the above photo was taken.

Our tested output:
12.1v – 44.6amps = 2.4LPM = 4.47mmw – cold start! (This can do better warmed and e-lyte tuned)

To see our cells in action go to: http://www.youtube.com/watch?v=gxuTBCV76OY

Cell specs:

16 plates:
—6 inch X 6 inch
—HUGE 1080 sq. inch active surface area = 7.5 feet sq.! (minus gasket space)
Note: please realize that a 4 inch X 4 inch (offered elsewhere) is LESS THAN HALF of the surface area.
—Forget about needing 4 to 6 “bath-tube” cells!
—CNC laser cut (No drilling or punching)
—20 guage 316L stainless steel (VERY tough and forgiving during reassembly, won’t muddy up your e-lyte)

Gaskets/Cell spacing: —1/16th inch
—precision machine-cut gaskets

Endplates:
—1/2” thick black UHMW-PE (Ultra High Molecular Weight – Polyethylene [very strong plastic])
—Black doesn’t get grubby looking so quickly in your shop or in your car

Hardware:
—all high grade steel bolts, nuts, washers

In/Out Ports:
—1/2 inch tapped with 1/2 inch hose fittings (straight and 90 degree included)

Other features:

—One of the strongest designs available (safer for accidental flashback)
—Can be taken apart and re-assembled in about 30 minutes for different configurations (You may need extra “connector” plates)
—suitable for vehicle mounting with additional components and controls

What you get:
—All parts are pre-manufactured, drilled, tapped, etc.. – You just stack it and bolt it!
—You will get everything you need to assemble what you see in the above photo and video with the above specs EXCEPT: you will get a triple stack, not 4. (You may need your own wire terminals depending on your wire size/preference)
—You will receive in your package a download address for a live assembly how-to video

Although this cell is intended for experienced installers and qualified auto mechanics, we wanted to post this note for those interested in installing any HHO system on vehicles:

Important Installation Note: At this time we do not recommend installing ANY HHO system on inter-cooled applications: turbocharged/supercharged. Testing is being done by us to determine/ensure that no trace amounts of caustic soda (or other electrolyte), which could damage the system, as well as accumulated water are entering and what effects these may have in the cooler core. The small amount of water vapor put out by HHO systems does not accumulate in engines because of the high heat. In an intercooler, excess water can accumulate. Additionally, no attempt should be made to inject HHO under pressure to overcome positive manifold pressure. UNDER NO CIRCUMSTANCES should HHO be put under pressure! This could create a Hydrogen BOMB.

If you need additional plates and gaskets for different configurations, contact me IMMEDIATELY after purchasing. (additional fee for additional parts)

For Pre-assembled units, please see my other items or contact me.

Please allow 4-7 business days for shipping.

Dealers: We have expanded our manufacturing capacity and are now accepting dealer/reseller inquiries.

WARNING/Disclaimer: this device is intended for experienced installers and qualified auto mechanics only who are at least 21 years of age. This device uses the electrolysis process to create Hydrogen gas. Hydrogen gas is EXTREMELY flammable (Remember the Challenger shuttle? Hindenburg?) By purchasing this device, you agree to use or misuse the device at your own risk. Additionally, High amperage and water create an electrocution HAZARD. The electrolyte process (with ANY HHO generator) may create known and unknown chemicals and substances that are known to be caustic, toxic and or poisonous. You should always wear chemical and electrically insulated gloves when working with a HHO generator, the electrolyte and other components. It is probably illegal to dump the electrolyte in your locality as it is hazardous to the environment (treat it just as you would the electrolyte in your car battery – you wouldn’t dump that in your kitchen sink would you?). Contact your local Hazardous waste handling facilities. No warranty, express or implied, is made nor should be assumed as to the suitability or performance of this device for any specific application. It is the buyer’s/user’s responsibility to do his/her own research and make his/her own evaluation. Use and/or misuse at your own Risk.
